Software Features

ConnectFlow offers industry-leading capabilities in the representation of hydrogeology and hydrogeochemistry. The software provides a discrete representation of rock fractures and their role as fluid conduits, as well as the more classical continuous porous medium representation of subsurface flow. The software enables the construction of detailed environmental models to calculate groundwater flow and solute transport for a wide variety of physical conditions, using a range of advanced solvers. Models and their outputs can be visualised using ConnectFlow's versatile graphical user interface (GUI), which includes interactive options to support the user in the design and construction of models.

User interface

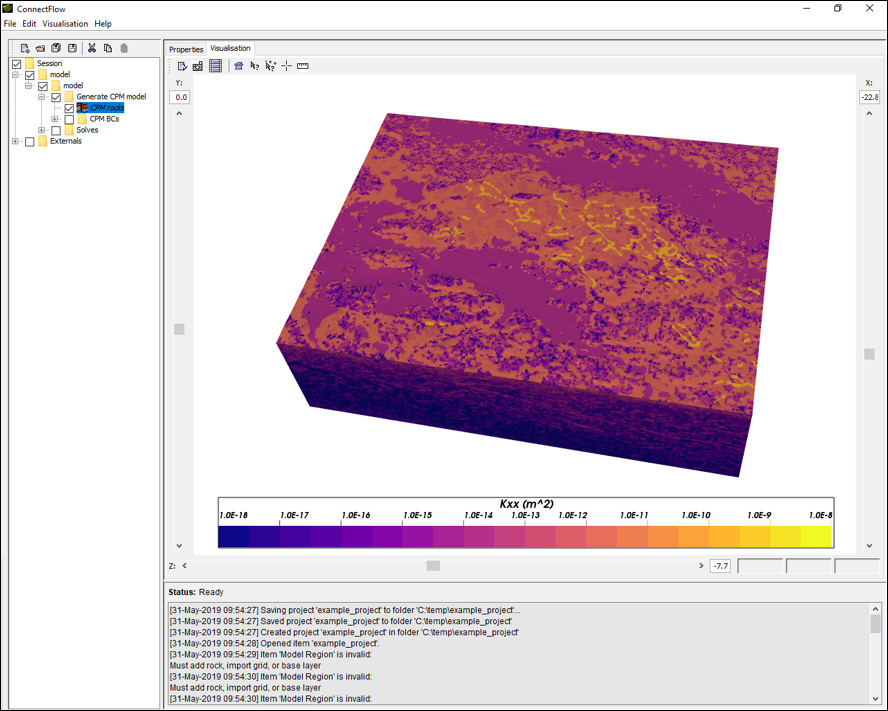

Powered by the state-of-the-art VTK graphics library, ConnectFlow's graphical user interface (GUI) provides users with advanced visualisation tools that can be applied to a wide range of three-dimensional subsurface data formats. Examples include visualisation of fracture networks, particle tracking pathlines or contaminant distributions.

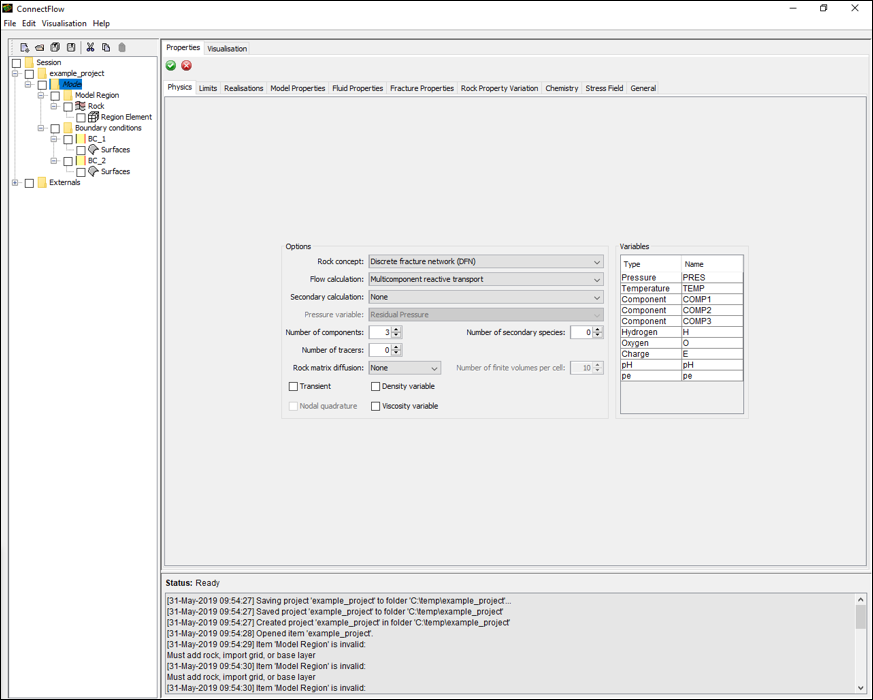

In addition to visualisation, the GUI can also be used to construct and run ConnectFlow models from within the graphical environment. Support for interacting with other widely-used modelling packages is also included, for example GOCADŽ file formats, ECLIPSE grids, ESRI(TM) surfaces, and many others.


ConnectFlow uses the finite-element approach for spatial discretisation of the modelled region. This is a powerful approach that is well suited to modelling complex geometric domains, such as those that occur in geological environments. ConnectFlow uses a highly efficient finite-element implementation, allowing it to handle large site- and regional-scale models consisting of many millions of grid cells or fractures. Temporal discretisation is achieved using either the Crank-Nicolson method or Gear's method. Non-linearities are treated using the Newton-Raphson iterative method, which converges rapidly given suitable initial conditions. Parameter stepping is implemented for highly non-linear problems, to overcome potential convergence difficulties.

A range of solvers are implemented in ConnectFlow, including an efficient Frontal direct method, the Generalised Minimum Residual (GMRES) iterative method and the algebraic multi-grid (AMG) iterative method. A range of preconditioners can also be applied to help with stability and convergence.

Reactive Transport

ConnectFlow supports inclusion of hydrogeochemical reactions in multi-component solute transport calculations in both the CPM and DFN modules. This is achieved by linking ConnectFlow to the USGS geochemical software PHREEQC, using the iPhreeqC library. ConnectFlow can be used to model the following types of reaction in transport calculations:

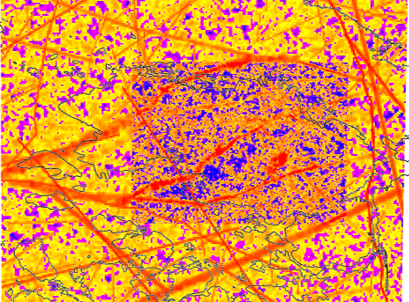

Upscaling is the process in which a DFN model is converted to an equivalent CPM (ECPM) model. This can be helpful if the ECPM representation allows faster calculation times or a functionality not available for DFN (such as heat transport). Upscaling is achieved by dividing the DFN model region into a three-dimensional grid of cells. Effective properties (i.e. porosity, permeability tensor, flow-wetted surface) are then calculated for each cell using a least-squares method, such that the characteristics of the fracture network are replicated (on average) in the ECPM model. Algorithms for geometric, flow-based and transport-based upscaling are available in ConnectFlow. The process can be subdivided across multiple calculations to reduce calculation run-times.

Capability summary

The table below lists ConnectFlow's main capabilities, and which modules they are supported by:





Physical Processes

Groundwater flow

Groundwater flow and heat transport



Unsaturated groundwater flow

Unsaturated groundwater flow and heat transport



Radionuclide transport



Radionuclide transport in unsaturated flow



Coupled groundwater flow and multi-component solute transport


Coupled flow, multi-component solute and heat transport



Rock matrix diffusion


Reactive (with chemical reactions) transport


Anion exclusion



Solute sorption (standard and 'smart' Kd)



Radioactive decay and ingrowth chains



Deterministic fracture specification

Random fracture network generation


Random fracture network conditioning



Particle tracking

DFN upscaling to equivalent CPM (ECPM)



Boundary Conditions

Specified value (Dirichlet) (spatially and temporally varying)

Specified flux (Neumann) (spatially and temporally varying)



Hydrostatic (no-flow)

Zero-dispersive flux


Point sinks/sources

River, lake and sea boundary conditions



User-specified boundary conditions (custom code)

Graphical User Interface

Form-based model and calculation design/specification

User input validation

Real-time job control

Help and tutorials

3D visualisation of models, inputs and outputs

Compatibility with third-party file formats

Calculation Options

Steady-state and transient calculations

Choice of solvers (frontal, GMRES, AMG)

Choice of preconditioners (AMG, ILU)

Quality assurance

ConnectFlow is developed under a Quality Assurance programme that conforms to the ISO 9001 international standard. A verification document is available from the Downloads section of the website.


ConnectFlow can read, write and visualise many open-source and third-party file formats:

We can often produce bespoke readers and writers for proprietary file formats.
